Pintu Alumunium - Aluminium Sliding Door

Beragam jenis pintu yang terbuat dari alumunium dapat kami kerjakan untuk mempercantik proyek perumahan / gedung anda.

Swing Door, Frameless Door, Hinged Door, Door Jamb 3" dan 4", Sliding Door yang semuanya terbuat dari100% alumunium.

Jika anda menginginkan ukuran khusus yang tidak terdapat dalam katalog kami di bawah, jangan sungkan untuk menghubungi Jaya Mataram, siapa tahu kami dapat membantu :-)

Katalog Pintu Alumunium / Aluminium Sliding Door

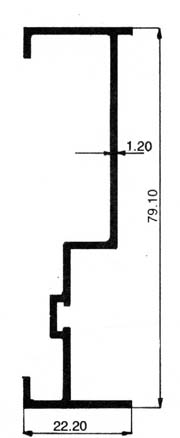

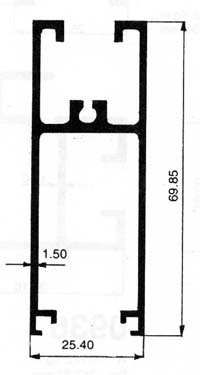

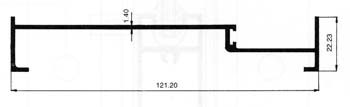

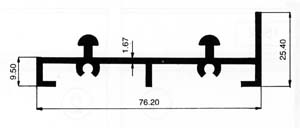

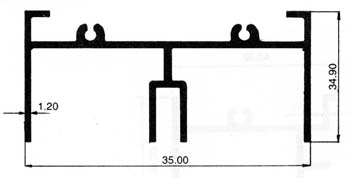

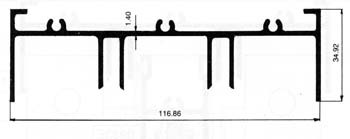

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2147 (Group 2147) 1.20 0.765 434.70
1415 (Group 1415) 1.30 0.806 436.40
0941 (Group 0941) 1.67 0.983 425.45

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2144 (Group 2147) 1.10 0.423 265.7.
1410 (Group 1415) 1.30 0.478 258.43
0933E (Group 0941) 1.6 0.563 257.38

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2143 (Group2147) 1.15 0.604 319.68
1414 (Group 1415) 1.30 0.662 314.37
0940 (Group 0941) 0.747 0.747 305.60

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
1411 (Group2147) 1.30 0.729 393.10
1411 (Group 1415) 1.30 0.729 393.10
0934 (Group 0941) 1.50 0.782 386.30

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2145 (Group2147) 1.20 0.481 296.67
1416 (Group 1415) 1.30 0.52 296.75
0942 (Group 0941) 1.67 0.652 290.83

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2146 (Group2147) 1.20 0.57 225.91
1412 (Group 1415) 1.30 0.621 226.50
0935 (Group 0941) 1.50 0.719 226.72

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2142 (Group2147) 1.20 0.567 246.31
1413 (Group 1415) 1.30 0.639 254.12
0936 (Group 0941) 1.50 0.722 247.32

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
3400 (Group2147) 1.15 0.412 264.479
2088 (Group 1415) 1.30 0.471 254.53
0948 (Group 0941) 1.6 0.58 247.13

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
3399 (Group2147) 1.15 0.289 165.432
2089 (Group 1415) 1.30 0.327 159.17
0949 (Group 0941) 1.67 0.378 154.13

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2147 (Group 2147) 1.20 0.765 434.70
1415 (Group 1415) 1.30 0.806 436.40
0941 (Group 0941) 1.67 0.983 425.45

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2144 (Group 2147) 1.10 0.423 265.7.
1410 (Group 1415) 1.30 0.478 258.43
0933E (Group 0941) 1.6 0.563 257.38

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2143 (Group2147) 1.15 0.604 319.68
1414 (Group 1415) 1.30 0.662 314.37
0940 (Group 0941) 0.747 0.747 305.60

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
1411 (Group2147) 1.30 0.729 393.10
1411 (Group 1415) 1.30 0.729 393.10
0934 (Group 0941) 1.50 0.782 386.30

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2145 (Group2147) 1.20 0.481 296.67
1416 (Group 1415) 1.30 0.52 296.75
0942 (Group 0941) 1.67 0.652 290.83

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2146 (Group2147) 1.20 0.57 225.91
1412 (Group 1415) 1.30 0.621 226.50
0935 (Group 0941) 1.50 0.719 226.72

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
1417 (Group 1415) 1.30 0.352 178.85
0943 (Group 0941) 1.67 0.422 190.62

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2142 (Group2147) 1.20 0.567 246.31
1413 (Group 1415) 1.30 0.639 254.12
0936 (Group 0941) 1.50 0.722 247.32

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
3400 (Group2147) 1.15 0.412 264.479
2088 (Group 1415) 1.30 0.471 254.53
0948 (Group 0941) 1.6 0.58 247.13

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
3399 (Group2147) 1.15 0.289 165.432
2089 (Group 1415) 1.30 0.327 159.17
0949 (Group 0941) 1.67 0.378 154.13

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2147 (Group 2147) 1.20 0.765 434.70
1415 (Group 1415) 1.30 0.806 436.40
0941 (Group 0941) 1.67 0.983 425.45

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2144 (Group 2147) 1.10 0.423 265.7.
1410 (Group 1415) 1.30 0.478 258.43
0933E (Group 0941) 1.6 0.563 257.38

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2143 (Group2147) 1.15 0.604 319.68
1414 (Group 1415) 1.30 0.662 314.37
0940 (Group 0941) 0.747 0.747 305.60

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
1411 (Group2147) 1.30 0.729 393.10
1411 (Group 1415) 1.30 0.729 393.10
0934 (Group 0941) 1.50 0.782 386.30

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2145 (Group2147) 1.20 0.481 296.67
1416 (Group 1415) 1.30 0.52 296.75
0942 (Group 0941) 1.67 0.652 290.83

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2146 (Group2147) 1.20 0.57 225.91
1412 (Group 1415) 1.30 0.621 226.50
0935 (Group 0941) 1.50 0.719 226.72

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2142 (Group2147) 1.20 0.567 246.31
1413 (Group 1415) 1.30 0.639 254.12
0936 (Group 0941) 1.50 0.722 247.32

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
3400 (Group2147) 1.15 0.412 264.479
2088 (Group 1415) 1.30 0.471 254.53
0948 (Group 0941) 1.6 0.58 247.13

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
3399 (Group2147) 1.15 0.289 165.432
2089 (Group 1415) 1.30 0.327 159.17
0949 (Group 0941) 1.67 0.378 154.13

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
1417 (Group 1415) 1.30 0.352 178.85
0943 (Group 0941) 1.67 0.422 190.62

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
0950 (Group 0941) 1.67 0.404 180.18

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
1189 (Group 0941) 1.50 0.83 412.50

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
1294 (Group 0941) 1.60 0.827 367.65

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2397 (Group 0941) 1.67 0.785 327.96
2491 (Group 0941) 1.40 0.696 325.15

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2397 (Group 0941) 1.67 0.785 327.96
2491 (Group 0941) 1.40 0.696 325.15

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2925 (Group 2925) 1.40 1.260 590.04
1561 (Group 1561) 1.57 1.386 627.27

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2927 1.40 1.003 455.23
1560 1.57 1.110 449.63

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2926 (Group 2925) 1.40 0.714 372.56
1562 1.57 0.802 370.26

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2925 (Group 2925) 1.40 1.260 590.04
1561 (Group 1561) 1.57 1.386 627.27

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2927 1.40 1.003 455.23
1560 1.57 1.110 449.63

alumunium Door-Sliding Door

Die NoThick (mm) W (Kg/m) Per (mm)
2926 (Group 2925) 1.40 0.714 372.56
1562 1.57 0.802 370.26
