Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|

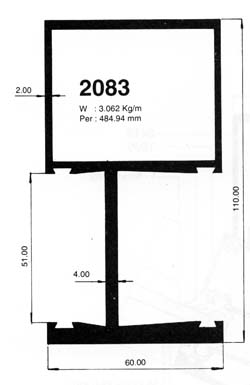

2083
|
2.00
|
3.062
|
484.94
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|

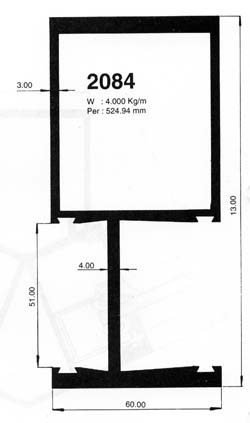

2084
|
3.00
|
4.000
|
524.94
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
2082
|
3.50
|
1.746
|
216.40
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
2081
|
4.00
|
2.292
|
430.80
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|

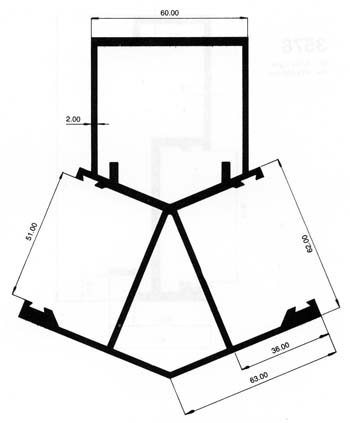

2419 (Group2083)
(Corner Mullion 135?)
|
2.00
|
3.354
|
612.308
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
3578 (Group 2083)
|
2.0
|
1.710
|
479.656
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1988
|
1.40
|
0.471
|
231.12
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1987
|
1.40
|
0.471
|
231.12
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1990
|
1.40
|
0.592
|
294.72
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1989
|
1.40
|
0.592
|
294.72
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1991 (Group 2083)
|
1.40
|
0.482
|
237.334
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1986 (Group 2083)
|
3.00
|
1.285
|
380.89
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1998 (Group 2083)
|
1.40
|
0.710
|
371.64
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1995 (Group 2083)
|
1.40
|
0.693
|
361.56
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1993 (Group 2083)
|
1.40
|
0.224
|
87.46
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1996 (Group 2083)
|
1.40
|
0.482
|
247.15
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
2312 (Group 2083)
|
1.40
|
0.288
|
152.65
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1997 (Group 2083)
|
1.40
|
0.590
|
310.13
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1985 (Group 2083)
|
3.00
|
1.610
|
441.57
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
2389 (Group 2084)
|
1.40
|
0.665
|
350.07
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
2388 (Group 2084)
|
1.40
|
0.798
|
412.63
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1971 (Pivoted Window)
|
1.30
|
0.327
|
207.10
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1968 (Pivoted Window)
|
1.80
|
0.670
|
277.40
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1977 (Pivoted Window)
|
2.00
|
0.995
|
241.36
|
|
|
Die No | Thick (mm)
|
W (Kg/m)
|
Per (mm)
|
|
1994 (Pivoted Window)
|
2.00
|
0.743
|
278.00
|
|
